CMS V500

Fully portable, laser-based ranging and imaging system for the commercial survey, engineering, mining and industrial markets.

Contact Sales

Sophisticated scanning for dangerous and inaccessible cavities

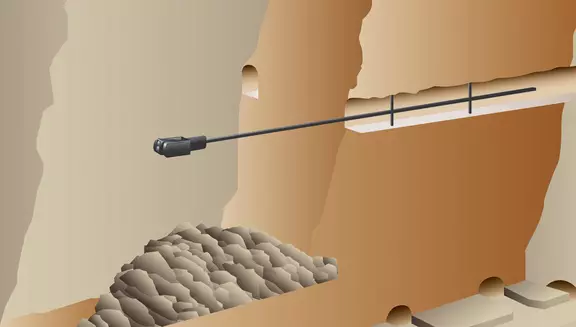

The industry-leading Teledyne OPTECH Cavity Monitoring System (CMS) is an ideal scanning solution for dangerous and inaccessible cavities in standard mining operations - the CMS head extends into the cavity while the operator stands clear, improving safety. The system is easy to transport and set up and is fully programmable, allowing the operator to define scan parameters. CMS delivers data in universally adopted data formats suitable for any software workflow, improving mine efficiency and operations by giving insight into the mine’s actual structure.

The latest V500 model offers new and enhanced features that make CMS even more valuable to mine operators, including an integrated camera, backsight/resection capability, a thinner profile, wireless operation, an extended field of view, and an optional cart.

Advantages of the CMS V500

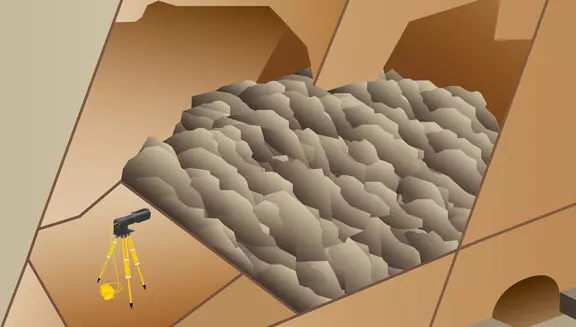

Accurate 3D models of cavities enable quick and easy data comparison
Real-time data visualization helps check data quality immediately, before leaving the site

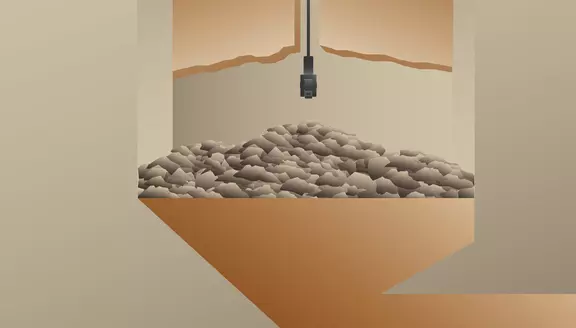

Remote operation lets operator monitor target from a safe area
Lightweight and portable hardware deploys easily with a single operator
Measures non-cooperative targets to deliver usable data even in harsh, wet, and dusty underground conditions
Fast data acquisition time lets you get in, survey, and then get out quickly, reducing exposure to danger
Universal data export formats put CMS data into all third-party mine planning and visualization software and CAD platforms for analysis.

CMS V500 new and enhanced features

Unique-to-market integrated internal camera delivers real-time still and video imagery
Backsight and resection capabilities in operating software improve workflow
Thin 130 mm (5.2 in) profile fits through small openings
Single-unit sensor removes all cables and external batteries for enhanced portability and setup time
Wireless PC operation increases flexibility and ease of use
Extended 320° field of view increases viewable area of cavities

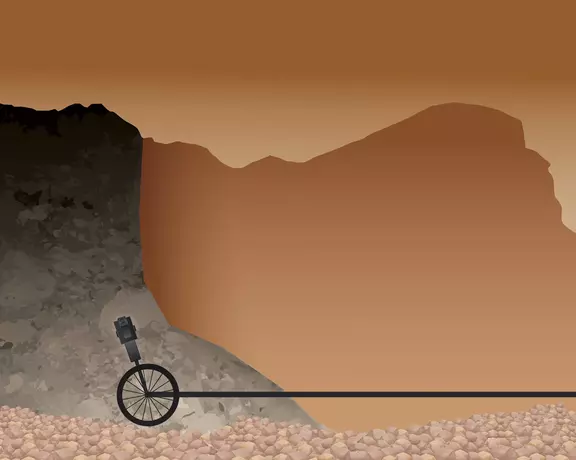

Optional cart deploys sensor into dangerous areas such as draw points.
