Lynx HS600

Premium mobile mapping solution

The Optech Lynx HS600 is the premium mobile mapping solution from the Lynx HS series, when maximizing resolution is paramount for survey-grade projects on high-speed roads. The Lynx HS600 lidar solution represents the apex of lidar design and performance. Significantly ahead of competition in lidar data quality, the Lynx HS600 offers not only exceptional accuracy, but also unmatched data resolution.

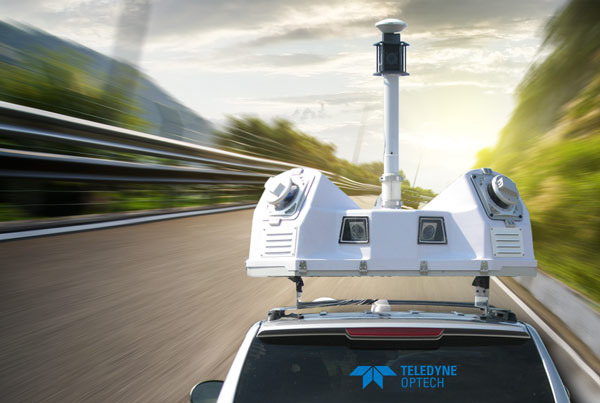

Available in two configurations, the dual-head Lynx HS600-D and the single-head Lynx HS600-S, the Lynx lets you select the most suitable model for your business, whether you are looking for greater efficiency or want a more compact and lower-cost solution. The Lynx HS600-D configuration is built to maximize accuracy and efficiency on design survey projects, and its multiple-perspective lidar coverage minimizes shadows, significantly increasing data collection efficiency and quality. The Lynx HS600-S is a lighter-weight, lower-cost model that is fully upgradeable to the dual-head configuration so that you can maximize data collection efficiency as your business expands while protecting your initial investment.

Advantages

  • Industry-leading scanner speed ensures uniform data at highway speeds

  • Industry-leading lidar data quality

  • Configurable system parameters manage data volume

  • LMS enables efficient and robust QA/QC

  • LMS workflow automates high-volume processing

  • Automated boresighting simplifies operations

  • Ladybug 360° camera captures integrated imagery

  • Real-time LAS output allows in-field QA and rapid access to the survey data

Applications

  • Corridor surveys
  • Design engineering
  • Rail surveys
  • Utilities mapping

Models

Model Description
Lynx HS600-D
Part number: Lynx HS300-D
Number of Lidar Sensors

2

Camera Support

Integrated FLIR Ladybug® camera

Timestamp for additional camera/sensor

Yes1

Maximum range

130 m @ 10% reflectivity2,3

Range precision

5 mm, 1 σ5

Absolute accuracy

±5 cm, 1 σ6

Laser measurement rate

150 - 1600 kHz, programmable (150; 400; 800; 1200; 1600 kHz)

Measurements per laser pulse

Up to 4 simultaneous

Scan frequency

Up to 1200 lines/sec, programmable (10-Hz intervals per sensor)7

Scanner field of view

360° without obscurations

Operating temperature

-10°C to +40°C (extended range available)

Storage temperature

-40°C to +60°C

Relative humidity

0-95% non-condensing

Laser classification

IEC/CDRH Class 1 eye-safe

Vehicle

Fully adaptable to any vehicle

*
  1. Customer can add additional sensors and use existing POS output.
  2. Slant range from sensor.
  3. Associated with 360-lines/sec and 150-kHz sensor settings. Based on ideal conditions. Contact Teledyne Optech for details.
  4. Associated with 180-lines/sec and 75-kHz sensor settings. Based on ideal conditions. Contact Teledyne Optech for details.
  5. Under test conditions. Contact Teledyne Optech for details.
  6. Assumes good GPS data (PDOP <4) and 10-m range using a post-processed GPS trajectory. Performance will degrade in the event of poor or lost GPS.
  7. Up to 600 lines/sec per lidar sensor.

* Simulated data — illustration purpose only





Lynx HS600-S
Part number: Lynx HS300-D
Number of Lidar Sensors

1

Camera Support

Integrated FLIR Ladybug® camera

Timestamp for additional camera/sensor

Yes1

Maximum range

130 m @ 10% reflectivity2,3

Range precision

5 mm, 1 σ5

Absolute accuracy

±5 cm, 1 σ6

Laser measurement rate

75 - 800 kHz, programmable (75; 200; 400; 600; 800 kHz)

Measurements per laser pulse

Up to 4 simultaneous

Scan frequency

Up to 600 lines/sec, programmable (10-Hz intervals per sensor)7

Scanner field of view

360° without obscurations

Operating temperature

-10°C to +40°C (extended range available)

Storage temperature

-40°C to +60°C

Relative humidity

0-95% non-condensing

Laser classification

IEC/CDRH Class 1 eye-safe

Vehicle

Fully adaptable to any vehicle

*
  1. Customer can add additional sensors and use existing POS output.
  2. Slant range from sensor.
  3. Associated with 360-lines/sec and 150-kHz sensor settings. Based on ideal conditions. Contact Teledyne Optech for details.
  4. Associated with 180-lines/sec and 75-kHz sensor settings. Based on ideal conditions. Contact Teledyne Optech for details.
  5. Under test conditions. Contact Teledyne Optech for details.
  6. Assumes good GPS data (PDOP <4) and 10-m range using a post-processed GPS trajectory. Performance will degrade in the event of poor or lost GPS.
  7. Up to 300 lines/sec per lidar sensor.

* Simulated data — illustration purpose only
